12 Layer PCB Manufacturing

As electronic systems become increasingly complex, standard 4-layer and 6-layer boards often cannot provide sufficient routing space or signal isolation.

A 12 layer PCB enables engineers to integrate high-speed interfaces, dense BGA packages, multiple power rails, and complex processing architectures into a compact board structure.

Compared with lower-layer-count PCBs, 12-layer boards offer:

• Higher routing density
• Improved signal integrity
• Better power distribution
• Enhanced EMI suppression
• Greater design flexibility

12 layer PCBs are commonly used in:

• AI servers
• Networking equipment
• Industrial automation
• Medical systems
• Automotive electronics
• High-performance computing
• Telecommunications infrastructure

TOPFAST supports prototype and production quantities with advanced multilayer fabrication capabilities.

Why Use a 12 Layer PCB?

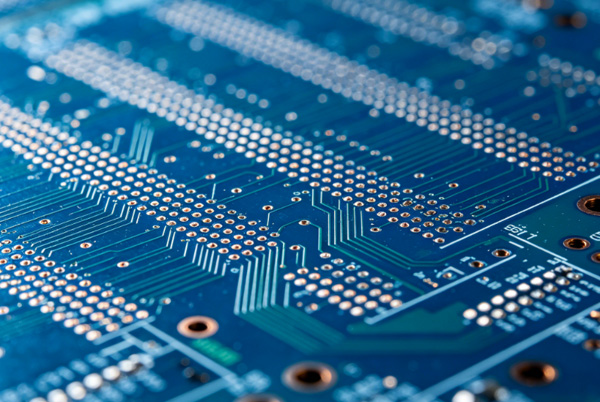

Higher Routing Density

Additional signal layers make it easier to route:

• High pin-count BGAs
• DDR memory buses
• PCIe interfaces
• High-speed communication signals

This helps reduce PCB size while supporting complex circuit architectures.

Improved Signal Integrity

Multiple reference planes help:

• Reduce crosstalk
• Minimize reflection
• Improve the return current paths
• Stabilize differential pairs

These advantages are critical for high-speed digital systems.

Related Reading: PCB Stackup Design Guide

Better Power Integrity

Dedicated power and ground layers provide:

• Lower impedance
• Reduced switching noise
• Improved voltage stability

This becomes increasingly important for CPUs, FPGAs, and AI processors.

Enhanced EMI Performance

Twelve-layer structures provide additional shielding between signal layers, reducing:

• Electromagnetic interference
• Radiation emissions
• Noise coupling

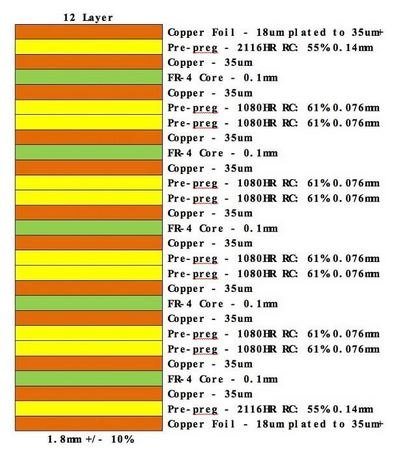

Typical 12 Layer PCB Stackup

A common stackup configuration is:

L1   Signal
L2   Ground
L3   Signal
L4   Signal
L5   Power
L6   Ground
L7   Ground
L8   Power
L9   Signal
L10  Signal
L11  Ground
L12  Signal

Advantages:

• Excellent signal integrity
• Stable impedance control
• Strong EMI suppression
• Balanced mechanical structure

Alternative stackups can be optimized for:

• High-speed digital systems
• RF and microwave circuits
• HDI designs
• Power electronics

Related Reading: High Frequency PCB Material Selection

Standard 12 Layer PCB Specifications

Parameter	Capability
Layer Count	12 Layers
Material	FR4, High Tg FR4, Rogers
Copper Weight	0.5–4 oz
Board Thickness	1.0–4.0 mm
Minimum Trace/Space	3/3 mil
Minimum Drill Size	0.15 mm
Surface Finish	ENIG, HASL, OSP, Immersion Silver
Impedance Control	Supported
IPC Standard	IPC Class 2 / IPC Class 3

Material Options

Standard FR4

Suitable for:

• Industrial control systems
• Embedded computing
• General-purpose multilayer designs

High Tg FR4

Recommended for:

• Lead-free assembly
• Automotive electronics
• High-temperature environments

Benefits include:

• Higher thermal stability
• Improved reliability
• Reduced delamination risk

Internal Link: PCB Delamination Causes and Prevention

Rogers Materials

Commonly used in:

• RF communication
• Radar systems
• High-frequency applications

Typical materials:

• RO4350B
• RO4003C
• RO3003

Related Reading: High Frequency PCB Material Selection

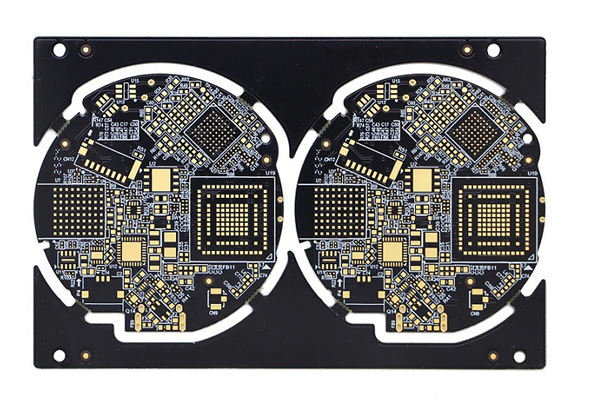

Applications of 12 Layer PCBs

AI Servers and High-Performance Computing

Modern server boards require:

• High-speed memory interfaces
• Large BGAs
• Dense routing structures

12-layer designs provide the necessary routing resources and electrical performance.

Telecommunications Equipment

Applications include:

• 5G infrastructure
• Optical communication devices
• Networking switches

These products demand:

• Controlled impedance
• Low insertion loss
• Excellent EMI performance

Automotive Electronics

Typical applications:

• ADAS systems
• Autonomous driving modules
• Battery management systems

Related Reading: Automotive PCBA Reliability Design

Medical Equipment

Medical electronics require:

• High reliability
• Stable signal transmission
• Low electromagnetic noise

Industrial Automation

Industrial controllers often operate in harsh environments and benefit from:

• Improved reliability
• Enhanced power integrity
• Reduced EMI

Design Considerations for 12 Layer PCBs

Stackup Planning

Stackup determines:

• Signal integrity
• Power integrity
• EMI performance
• Manufacturability

Improper stackup may lead to:

• Crosstalk
• Reflection
• Excessive warpage

Internal Link: PCB Stackup Design Guide

Controlled Impedance

Many interfaces require precise impedance values:

Interface	Typical Impedance
USB	90 Ω Differential
Ethernet	100 Ω Differential
PCIe	85 Ω Differential
DDR	40–60 Ω Single-Ended

Related Reading: PCB Impedance Control Explained

Via Reliability

High-layer-count boards place greater stress on plated vias.

Designers should consider:

• Aspect ratio
• Copper thickness
• Thermal expansion
• Hole wall quality

Related Reading: PCB Via Failure Analysis

Copper Balance

Balanced copper distribution helps prevent:

• Bow and twist
• Internal stress
• Lamination defects

Related Reading: PCB Warpage and Reflow Deformation

Material Selection

Material selection should consider:

• Frequency
• Thermal requirements
• Reliability targets
• Manufacturing capability

Related Reading: High Frequency PCB Material Selection

How to Order a Custom 12 Layer PCB

Need Custom 12 Layer PCB Manufacturing?

TOPFAST supports:

✓ High Tg and Rogers materials

✓ Controlled impedance structures

✓ IPC Class 2 and IPC Class 3 standards

✓ Prototype and production volumes

✓ Engineering review and DFM support

Frequently Asked Questions

Conclusion

12 layer PCBs provide the routing density, signal integrity, and reliability required for today’s most demanding electronic systems.

Through optimized stackup design, controlled impedance, high-quality materials, and advanced manufacturing processes, 12-layer boards support applications ranging from AI servers and telecommunications to automotive and industrial systems.
