Smart Industrial Control PCB Solutions
Engineered for 24/7 reliability in mission-critical automation. Certified quality for robotics, power systems, and factory IoT arrays.
Request an Instant Quote
0%
System Uptime
0+
Years Experience
0%
Full Traceability
Why Choose TOPFAST for Industrial
Ensuring operational continuity and safety in high-stress environments.
Rugged Reliability
Materials and coatings designed to handle dust, dampness, and extreme temperature cycles (-40°C to +125°C).
Heavy Copper Solutions
Proven excellence in power electronics, supporting up to 10oz copper for high-current motor control.
Zero-Defect Inspection
100% E-test, AOI, and specialized X-ray for BGA joints to prevent costly field failures.
Request Instant Quote
✓ Industrial-grade engineering support
Advanced Industrial Capabilities
Stability and precision for the next generation of smart manufacturing.
Power Electronics
Handling heavy current loads with thick copper and thermally conductive ceramic substrates.
6oz - 10oz
Max
Thermal Vias/Sink
High Voltage Safe
UL 94V-0
Precision Control
High-density interconnects for complex PLCs, HMI units, and robotic motion processors.
Micro/Laser Vias
Ultra-Fine BGA
Impedance ±5%
Up to 32+ Layers
Voices of Industry
"TOPFAST provides the exact traceability and high-Tg reliability our robotic arms require for automated warehouses."
"The 10oz copper boards for our motor controllers are flawless. Professional communication and fast turnaround."
"Excellent HDI stack-up advice. They helped us shrink our PLC footprint by 30% while maintaining thermal integrity."
"The thermal stability of TOPFAST's boards is exceptional. Their expertise in ceramic substrates for our smart grid inverters has significantly reduced field failure rates in high-heat environments."
"For our industrial medical imaging equipment, precision is everything. TOPFAST handled our 16-layer rigid-flex design with micron-level accuracy. Their documentation and CoC are impeccable."
"Quick-turn prototyping that doesn't compromise on quality. They enabled us to iterate our industrial IoT sensor arrays in half the usual time without skips in AOI/X-ray testing."
Technical Specifications & Tolerances
| Parameter | Standard Capability | Industrial Advanced |
|---|---|---|
| Base Material | FR4 (High Tg 150-180) | Ceramic, Metal Core (MCPCB) |
| Max Copper Weight | 1oz - 3oz | Up to 10oz (Heavy Duty) |
| Surface Finish | HASL / ENIG | Hard Gold / ENEPIG / Immersion Sn |
| Board Thickness | 1.6mm - 3.2mm | Up to 7.5mm (Multi-Layer) |
| Soldermask | Green, White, Black | High-Reflectivity / Special Resist |
| IPC Standard | IPC Class 2 | IPC Class 3 / 3A |
Industrial Manufacturing Workflow
1
DFM Validation
Rigorous checks for thermal dispersion and high-current trace clearance.
2
LDI Imaging
Precision laser imaging ensures zero-defect patterns for safety sensors.
3
Vacuum Pressing
High-reliability lamination to prevent delamination in hot industrial cabinets.
4
ESS Testing
Environmental Stress Screening ensures boards handle vibration and moisture.

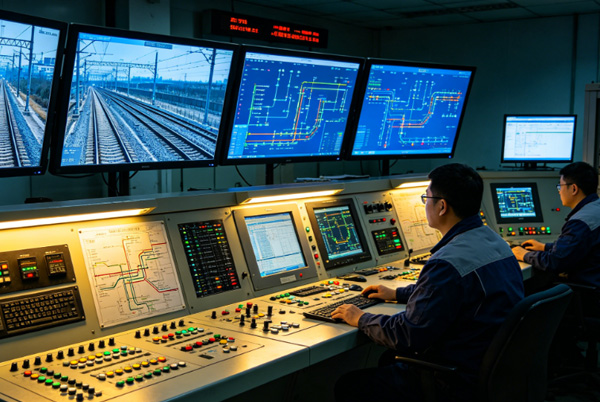

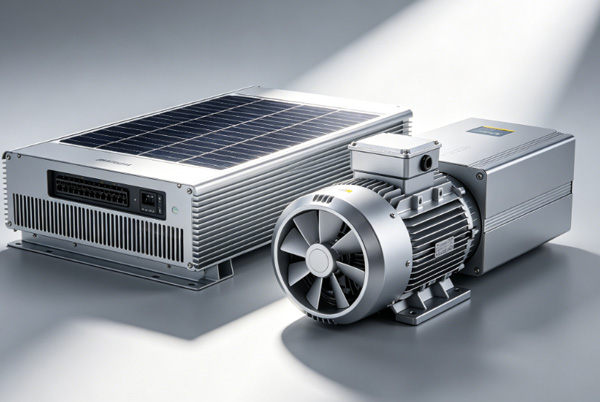

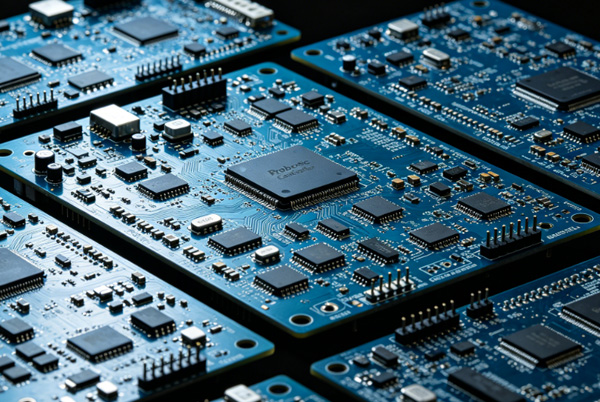

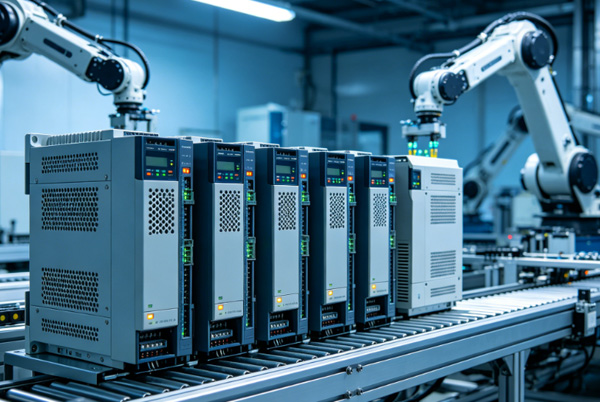

Proven in Harsh Environments
Industrial PCB FAQ
What materials are best for high-vibration industrial settings?
We recommend high-Tg FR4 or Polyimide with reinforced resin systems and
specific solder mask coatings to ensure pad integrity under constant mechanical stress.
How do you ensure thermal stability for long-term use?
Through advanced thermal via arrays, metal-core substrates, and
high-conductivity copper layers that efficiently move heat away from sensitive ICs.
Do you handle small-batch prototypes for industrial IoT projects?
Yes. We support agile R&D with rapid prototyping for small batches
(1-10 units) without compromising on the industrial testing protocols.
What is your IPC compliance for industrial control boards?
Our standard process follows IPC Class 2, but for high-reliability
systems, we move to IPC Class 3 which demands tighter tolerances and 0% risk of failure.
