16 Layer PCB Manufacturing

As data rates continue to increase and electronic systems become more complex, PCB designs require additional routing layers and tighter signal integrity control.

A 16 layer PCB provides the routing density and electrical performance needed for modern AI servers, networking equipment, telecommunications infrastructure, aerospace electronics, and high-performance computing systems.

Compared with lower-layer-count boards, 16-layer PCBs offer:

• Extremely high routing density
• Superior signal integrity
• Enhanced power integrity
• Better EMI suppression
• Greater design flexibility

TOPFAST supports prototype and production quantities with engineering review and DFM support for complex multilayer PCB projects.

Why Use a 16 Layer PCB?

Support for High Pin-Count Devices

Modern processors and FPGAs often contain thousands of pins.

A 16-layer structure provides sufficient routing resources for:

• Large BGAs
• DDR memory buses
• PCIe interfaces
• High-speed communication links

Superior Signal Integrity

Additional reference planes help:

• Reduce crosstalk
• Improve return current paths
• Minimize reflections
• Stabilize impedance

These characteristics are essential for high-speed digital designs.

Better Power Integrity

Multiple power and ground layers provide:

• Lower PDN impedance
• Reduced switching noise
• Improved voltage stability

This is especially important for:

• CPUs
• GPUs
• AI accelerators
• FPGAs

Improved EMI Performance

Sixteen-layer structures provide excellent shielding between signal layers, helping reduce:

• Electromagnetic radiation
• Noise coupling
• Crosstalk

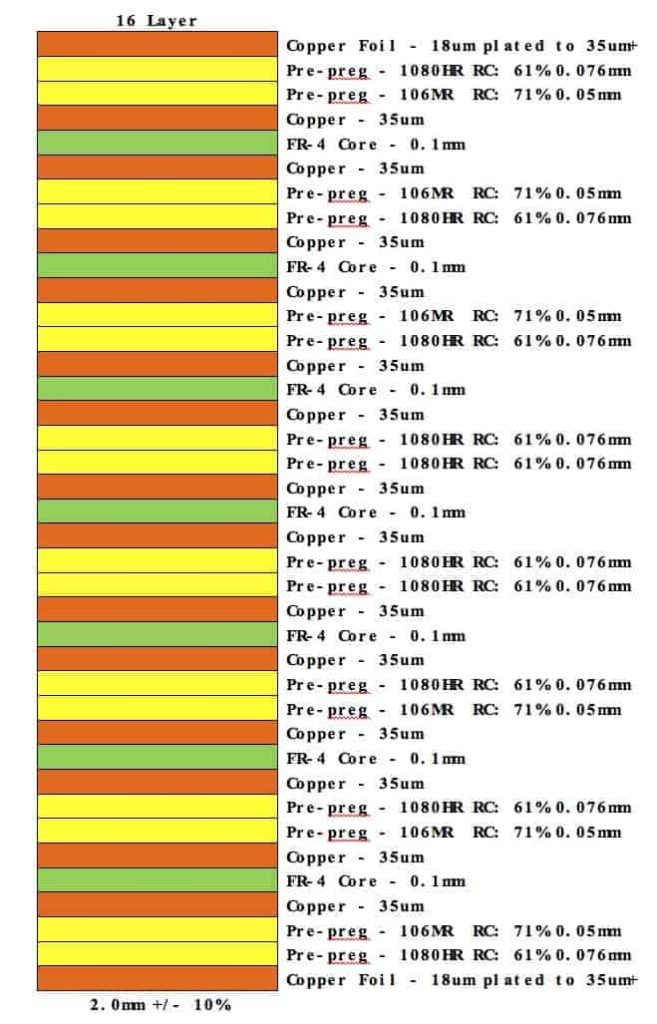

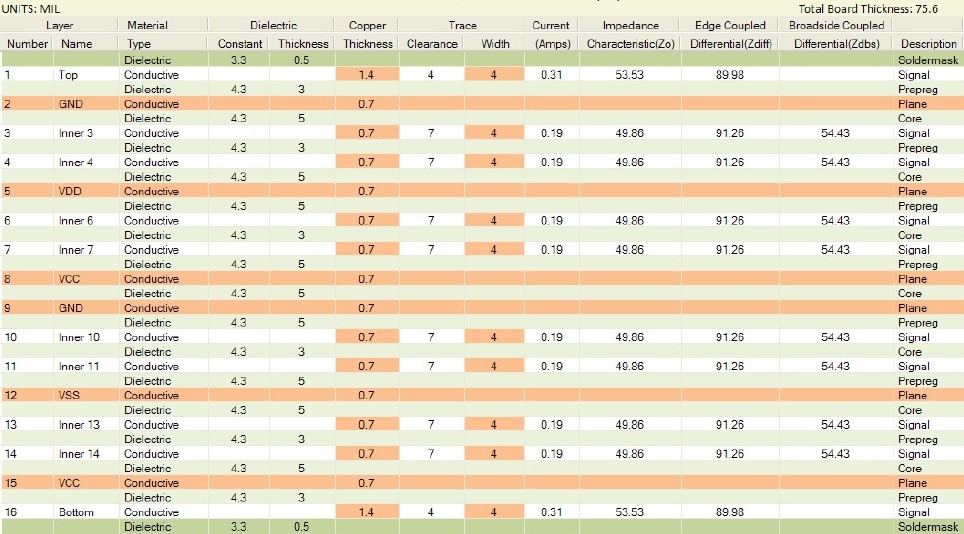

Typical 16 Layer PCB Stackup

A common stackup configuration is:

L1   Signal
L2   Ground
L3   Signal
L4   Ground
L5   Signal
L6   Power
L7   Ground
L8   Signal
L9   Signal
L10  Ground
L11  Power
L12  Signal
L13  Ground
L14  Signal
L15  Ground
L16  Signal

Benefits include:

• Stable impedance control
• Strong signal isolation
• Excellent EMI suppression
• Balanced mechanical structure

Alternative stackups may be optimized for:

• HDI designs
• High-speed digital systems
• RF applications
• Power electronics

Related Reading: High Frequency PCB Material Selection

Standard 16 Layer PCB Specifications

Parameter	Capability
Layer Count	16 Layers
Material	FR4, High Tg FR4, Rogers
Copper Weight	0.5–6 oz
Board Thickness	1.2–5.0 mm
Min Trace/Space	3/3 mil
Min Drill Size	0.15 mm
Surface Finish	ENIG, OSP, HASL, Immersion Silver
Controlled Impedance	Supported
IPC Standard	IPC Class 2 / IPC Class 3

Material Options

Standard FR4

Suitable for:

• Industrial electronics
• Embedded computing
• Networking products

High Tg FR4

Recommended for:

• High-temperature environments
• Automotive electronics
• Lead-free assembly

Advantages include:

• Better thermal stability
• Improved reliability
• Reduced delamination risk

Internal Link: PCB Delamination Causes and Prevention

Rogers Materials

Commonly used in:

• RF communication
• Radar systems
• Microwave circuits

Typical materials include:

• RO4350B
• RO4003C
• RO3003

Applications of 16 Layer PCBs

AI Servers and High-Performance Computing

Modern AI systems require:

• Massive routing resources
• High-speed memory interfaces
• Multiple power domains

Sixteen-layer boards provide the electrical performance needed for these demanding applications.

Telecommunications Equipment

Applications include:

• 5G base stations
• Optical communication systems
• Core network switches

These products require:

• Controlled impedance
• Low insertion loss
• Excellent signal integrity

Aerospace Electronics

Aerospace applications demand:

• High reliability
• Thermal stability
• Resistance to vibration

Medical Imaging Systems

Medical electronics require:

• Stable signal transmission
• Low electromagnetic noise
• Long-term reliability

Industrial Automation

Industrial controllers benefit from:

• Better power integrity
• Improved EMC performance
• Higher reliability

Manufacturing Challenges of 16 Layer PCBs

Layer Registration Accuracy

As layer count increases, registration tolerances become more critical.

Poor alignment can result in:

• Signal discontinuities
• Via failures
• Impedance variation

Related Reading: PCB Via Failure Analysis

Multiple Lamination Cycles

High-layer-count PCBs often require careful control of:

• Pressure
• Temperature
• Resin flow

Improper lamination may cause:

• Delamination
• Internal voids
• Reliability problems

Internal Link: PCB Manufacturing Process

Warpage Control

Thicker multilayer structures are susceptible to:

• Bow and twist
• Thermal deformation
• Mechanical stress

Hole Quality and Plating Reliability

Deep vias require:

• Uniform copper thickness
• Stable plating chemistry
• Good hole wall quality

These factors strongly influence long-term reliability.

Key Design Considerations

Stackup Planning

Proper stackup design improves:

• Signal integrity
• Power integrity
• EMI performance
• Manufacturability

Internal Link: PCB Stackup Design Guide

Controlled Impedance

Typical impedance requirements include:

Interface	Typical Impedance
USB	90 Ω Differential
Ethernet	100 Ω Differential
PCIe	85 Ω Differential
DDR	40–60 Ω Single Ended

Via Reliability

Design considerations include:

• Aspect ratio
• Copper plating thickness
• Thermal expansion

Material Selection

Material selection should consider:

• Operating frequency
• Thermal requirements
• Reliability targets

16 Layer PCB vs 14 Layer PCB

Feature	14 Layer PCB	16 Layer PCB
Routing Density	Very High	Extremely High
Signal Integrity	Excellent	Superior
Power Integrity	Excellent	Better
EMI Performance	Outstanding	Outstanding
Manufacturing Complexity	High	Very High
Typical Applications	Telecom, AI Servers	HPC, Aerospace, AI Platforms

Related Reading: 14 Layer PCB Manufacturing

How to Order a Custom 16 Layer PCB

Need a Custom 16 Layer PCB?

TOPFAST supports:

✓ High Tg and Rogers materials

✓ Controlled impedance structures

✓ IPC Class 2 and IPC Class 3 production

✓ Prototype and volume manufacturing

✓ Engineering review and DFM support

FAQ

How to Choose Between 12, 14, and 16 Layer PCBs

When selecting a multilayer structure, engineers should evaluate:

Routing Complexity

Higher layer counts provide more routing channels for high pin-count devices.

Signal Integrity Requirements

Applications with PCIe, DDR5, and 112G SerDes interfaces often benefit from additional reference planes.

Power Integrity

More power and ground layers improve PDN performance.

Manufacturing Cost

Increasing layer count also increases fabrication complexity and lead time.

Conclusion

A 16 layer PCB delivers exceptional routing density, signal integrity, and reliability for advanced electronic systems.

Through optimized stackup design, material selection, impedance control, and robust manufacturing processes, sixteen-layer boards enable the development of AI servers, telecommunications infrastructure, aerospace systems, and high-performance computing platforms.
