1. Product Definition & Core Features

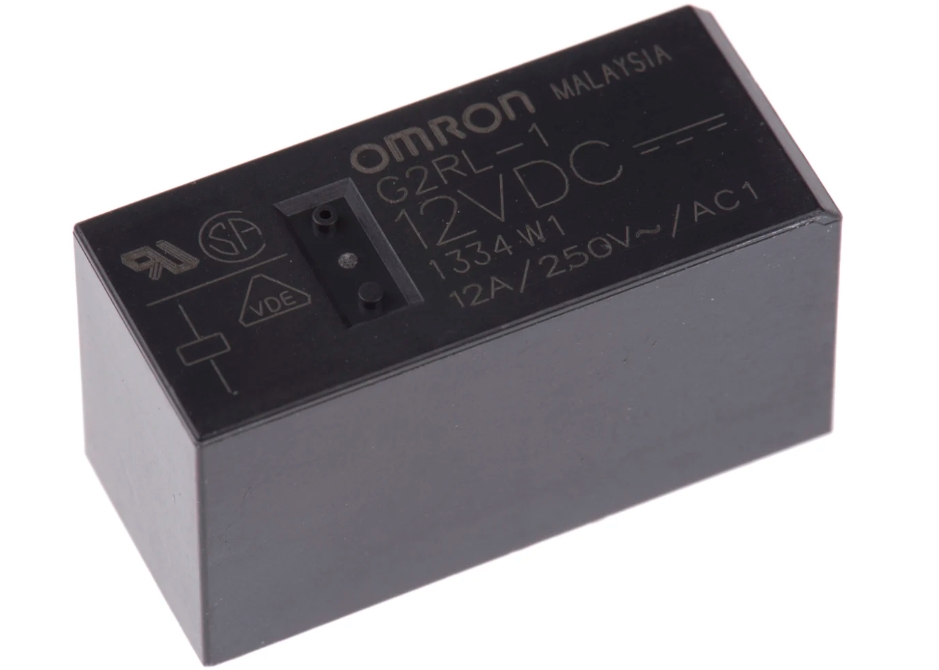

The 12V SPDT ultra-miniature PCB mount relay is a precision electronic switching device based on electromagnetic principles, featuring:
- Compact Design: Typical dimensions of just 10×10×5mm (varies by model), weight generally <10g
- High-Performance Electrical Parameters:
- Operating voltage: 12VDC ±20%
- Contact form: SPDT (1 Form C)
- Contact resistance: ≤50mΩ
- Exceptional Environmental Adaptability:
- Operating temperature range: -40℃ to +85℃
- Protection rating: IP67 (premium models)
2. Key Technical Parameter Comparison
Parameter | Industrial Grade | Automotive Grade | Telecom Grade |
---|---|---|---|
Mechanical Life | 500,000 cycles | 1M cycles | 300,000 cycles |
Contact Rating | 5A@30VDC | 10A@14VDC | 2A@24VDC |
Insulation Res. | 100MΩ | 500MΩ | 1GΩ |
Dielectric With. | 1kV AC | 2.5kV AC | 1.5kV AC |
3. In-Depth Application Analysis
- Automotive Electronics
- Example: EV BMS control circuits
- Special Requirements:
- AEC-Q200 certification mandatory
- Vibration resistance ≥ 5 Grms
- H₂S gas corrosion resistance
- Industrial Automation
- Typical Configuration:
- PLC safety circuits
- 24V bus isolation
- Key Metrics:
- MTBF >100,000 hours
- 4kV EFT immunity
- Telecom Equipment
- RF Characteristics:
- Insertion loss <0.5dB@1GHz
- Isolation >60dB@900MHz
- Applications:
- Base station RF switching
- Test instrument signal routing
4. Engineering Selection Guide

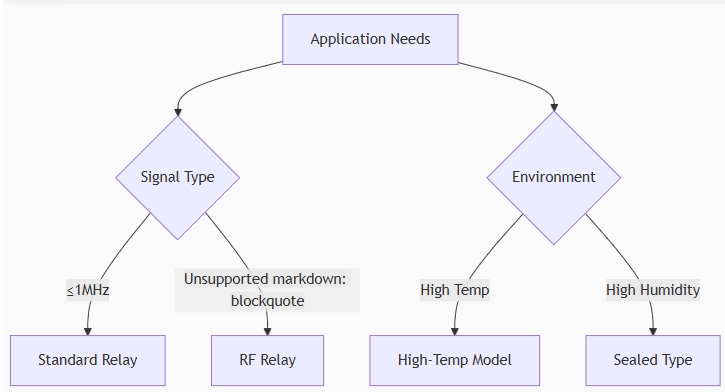

- Parameter Matching Matrix
Reliability Verification
- Electrical Endurance: 10^5 cycles @ rated load
- Environmental Testing:
- Thermal cycling (-40℃~125℃)
- 96hr salt spray
- Mechanical Shock: 50G, 11ms
5. Installation Specifications
- PCB Design Guidelines
- Pad size: Lead diameter +0.3mm
- Clearance:
- HV apps: ≥2.5mm
- Standard: ≥1mm
- Thermal Design:
- Recommended thermal vias
- Avoid proximity to heat-sensitive components
Soldering Parameters
Process | Temperature | Duration |
---|---|---|
Wave | 245±5℃ | 3-5s |
Reflow | Peak 260℃ | <10s |
Hand | 350℃ max | <3s/pin |
6. Testing & Validation
- Dynamic Characterization
- Switching Time:
- Oscilloscope capture
- Typical: Pickup ≤5ms, Dropout ≤3ms
- Contact Bounce:
- Requirement: ≤1ms
- Switching Time:
- RF Performance Testing
- VNA Setup:
- Calibrated to relay ports
- Frequency range: 100kHz-6GHz
- Key Metrics:
- VSWR<1.5:1
- Phase consistency <5°
- VNA Setup:
7. Industry Trends
- Innovation Directions
- Solid-state hybrid technology
- Integrated driver IC solutions
- 5G mmWave adaptation
- Market Forecast
- Global market: $1.2B by 2025
- CAGR: Automotive 18%, Industrial 12%
