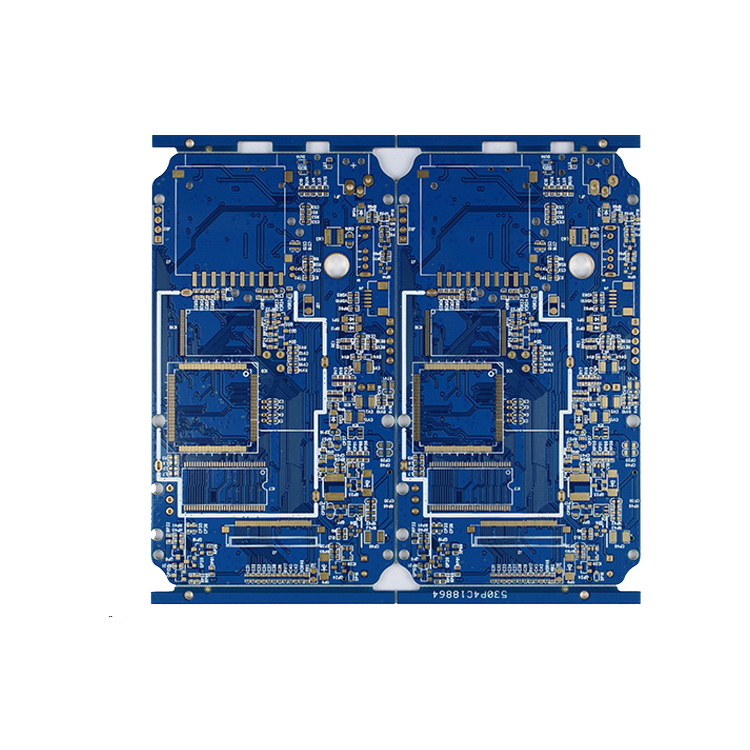

Rigid PCBs Manufacturing advantage
High-Precision Manufacturing
3/3 mil line spacing • 1-32 layers • ±2 mil alignment • HDI/BGA capable
Industry-Specific Solutions
AEC-Q100 automotive • 5G/RF materials • High-power thermal management
Quality & Reliability
ISO 9001/IATF 16949 • Full testing (AOI, impedance) • 99%+ yield rate
Fast Turnkey Service
24h prototypes • 2-7 day production • Stable supply chain
Request PCB Quote
Get DFM analysis and volume discounts
Why Choose Rigid PCBs?
-
Robust Structure
Resistant to deformation and vibration, ideal for harsh environments like industrial/automotive applications -
Excellent Electrical Performance
Stable signal transmission, superior high-frequency characteristics, reliable insulation -
High Integration
Supports multilayer designs (up to 40 layers) and fine circuitry (minimum 3mil line width) -
Effective Thermal Management
High temperature resistance (130°C+), optional metal substrates for enhanced heat dissipation
Request PCB Quote
Get DFM analysis and volume discounts
Common Materials for Rigid PCBs
1 Standard Substrates
FR-4 (Fiberglass Epoxy)
- Features: Cost-effective, high mechanical strength, flame retardant (UL94 V-0)
- Applications: Consumer electronics, industrial controls
FR-1/FR-2 (Paper Phenolic)
- Features: Ultra-low cost but poor heat resistance
- Applications: Low-end appliances, simple circuits
2 High-Frequency Materials
Rogers Series (RO4000, RO3000)
- Features: Low dielectric loss (Df <0.004), stable Dk
- Applications: 5G antennas, satellite communications
Taconic TLY/TLF Series
- Features: Ultra-low loss (Df as low as 0.001)
- Applications: High-frequency filters, aerospace
Get Material Consultation
Our engineers will help select the optimal material

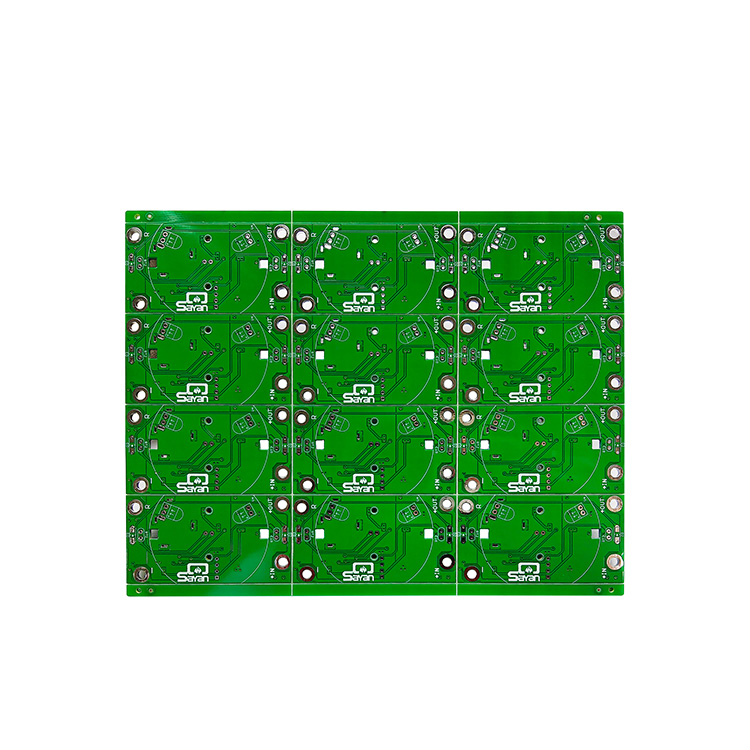

Common PCB Material Samples
Key Material Parameter Comparison
| Material Type | Dk | Df | Temp Resistance | Cost |
|---|---|---|---|---|
| FR-4 | 4.3-4.8 | 0.02 | 130°C | $ |
| Rogers 4350 | 3.48 | 0.0037 | 280°C | $$$$ |
| Aluminum PCB | – | – | 150°C | $$ |
Material Selection Tips:
- General circuits: FR-4
- High-frequency: Rogers/Taconic
- Thermal demands: Aluminum/Copper

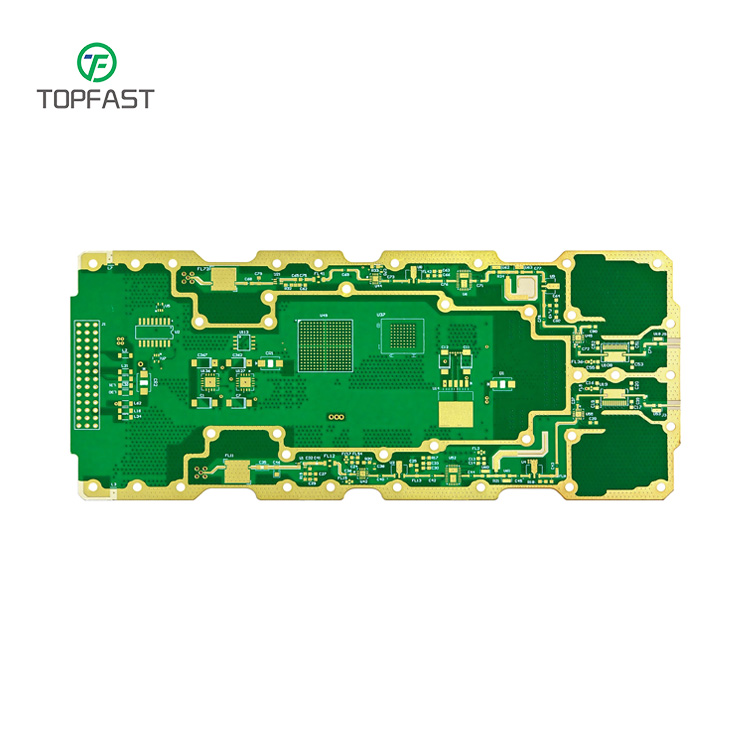

- Extreme environments: High-Tg or Polyimide
Rigid PCB Manufacturing Process
Precision engineering with 11 critical quality-controlled stages
1
Material Preparation
- Select substrate (FR-4, Rogers, etc.)
- Copper foil selection
- Cut to required panel sizes
4
Drilling
- Mechanical drilling (0.15-6.5mm)
- Laser drilling for microvias (<100μm)
- Deburring and cleaning
7
Solder Mask Application
- Screen printing or photoimaging
- UV exposure and development
- Curing (150°C for 30-60 mins)
10
Testing & Inspection
- Electrical Testing
- 100% visual inspection
- Final QC verification
2
Inner Layer Processing
- Dry Film Lamination
- Exposure & Development
- Acid/alkaline etching
- AOI Inspection
5
Plating
- Electroless Copper Deposition
- Electroplating (20-25μm)
- Through-hole conductivity
8
Surface Finishing
- HASL (Hot Air Solder Leveling)
- ENIG (Electroless Ni/Au)
- OSP/Immersion options
11
Packaging & Shipping
- Vacuum sealing
- Desiccant inclusion
- ESD protection
3
Lamination
- Stack inner layers with prepreg
- Add outer copper layers
- High-pressure (300-500 PSI)
- 180-200°C curing
6
Outer Layer Processing
- Repeat dry film process
- Pattern plating
- Final etching
9
Silkscreen & Marking
- Component labels
- Logos and identifiers
- UV/thermal curing
Rigid PCB Application Fields
High-performance solutions for demanding industries
Consumer Electronics
- Smartphone motherboards
- WiFi routers & networking gear
- Smart home devices
- Wearable technology
Typical Layers
4-12
Material
FR-4, High-Tg
Consumer Electronics
Automotive Electronics
- Engine Control Units (ECUs)
- ADAS radar systems
- Infotainment systems
- Battery management systems
Certification
AEC-Q100
Material
High-Tg, Rogers
Automotive Electronics
Industrial Control
- PLCs (Programmable Logic Controllers)
- Servo drives & motor controls
- HMI panels
- Industrial networking
Environment
-40°C to 125°C
Material
FR-4, Polyimide
Industrial Control
Aerospace
- Satellite communication
- Avionics systems
- Flight control systems
- Radar & surveillance
Standard
IPC-6012 Class 3
Material
Rogers, Teflon
Aerospace
FAQ
Issues you may encounter when purchasing rigid PCBs
Can you do multiple layers of rigid boards and how many layers can you do?
Of course, we can do up to 60 layers of rigid circuit boards. Provide Gerber documents and board instructions, and our professional technicians will follow up to ensure “high quality” while achieving “fast delivery”.
Any industry documents with similar needs? Can you send them to me?
We can’t share these documents. When we sign a contract, we sign an NDA agreement with our customers that we can’t disclose the customer’s design to maximize the customer’s benefit. We are a trustworthy and responsible supplier, and we will not disclose your products to other customers when they ask for them in the future.
If I want to order rigid circuit boards, how do I order them?
You can order through multiple channels:
- Online: Get a free quote on our website
- Email: Send to **@********cb.com with your name, company, address, phone number, email, product number, quantity, delivery time and any other information. Attach your Gerber file.
- Phone: Call us at +86 139 2957 6863 for any questions
Can I make a PCB if I only have a schematic?
Yes, you can. We can lay out the PCB according to your schematic and then arrange the production. Please send your schematic and requirements to **@********cb.com, and we will provide a quotation accordingly.
What certifications do PCB factories have?
All of our products are IPC rated with:
- ISO 14001
- ISO 9001
- CE
- ROHS certificates
Our products are widely used in communication, medical equipment, industrial control, power supply, consumer electronics, aerospace, automotive industry and other fields.
