High Mix Low Volume PCB Assembly: HMLV PCBA Guide

High mix low volume (HMLV) PCB assembly is a specialized manufacturing model designed for many product variants produced in small quantities.
It is widely used in industrial, medical, aerospace, and customized electronics.

In this guide, TOPFAST, a professional PCB manufacturer, explains how HMLV PCB assembly works, its challenges, benefits, and when it is the right choice.

What Is High Mix Low Volume PCB Assembly?

High mix, low volume PCB assembly refers to:

• A wide variety of PCB designs (high mix)
• Small batch quantities for each design (low volume)
• Frequent product changeovers

Typical quantities range from 10 to 500 units per design.

Volume comparison:
Low Volume PCB Assembly: Process, Cost & Use Cases

Why HMLV PCB Assembly Is Important

HMLV PCBA supports:

• Customized electronics
• Rapid product updates
• Short product life cycles
• Market-specific configurations

It allows manufacturers to respond quickly to changing customer requirements.

Industries That Rely on HMLV PCBA

HMLV PCB assembly is common in:

• Industrial automation
• Medical devices
• Aerospace and defense
• Telecommunications
• Test and measurement equipment

These industries prioritize flexibility and reliability over unit cost.

Key Challenges of High Mix Low Volume PCB Assembly

1. Frequent Changeovers

• Different PCB layouts
• Different BOMs
• Different assembly processes

Efficient changeover management is essential.

2. Complex Component Sourcing

• Many part numbers
• Low purchasing quantities
• Obsolete or long-lead components

Strong supply chain capabilities are critical.

3. Quality Control Complexity

Each product may require:

• Different inspection criteria
• Different testing methods

Quality & testing:
PCBA Testing Methods Explained

HMLV PCB Assembly Process

1. Engineering Preparation

Key activities include:

• DFM/DFA review for each design
• BOM verification and standardization
• Panelization optimization

Design readiness:
PCB Assembly File Requirements Explained

2. Flexible PCB Fabrication

HMLV PCBA often requires:

• Multiple materials
• Different stack-ups
• Controlled impedance or special finishes

Fabrication context:
PCB Manufacturing vs PCB Assembly

3. Flexible SMT & THT Assembly

Manufacturing lines must support:

• Rapid line setup
• Small lot SMT runs
• Selective THT soldering
• Manual assembly where needed

Assembly techniques:
SMT vs THT PCB Assembly

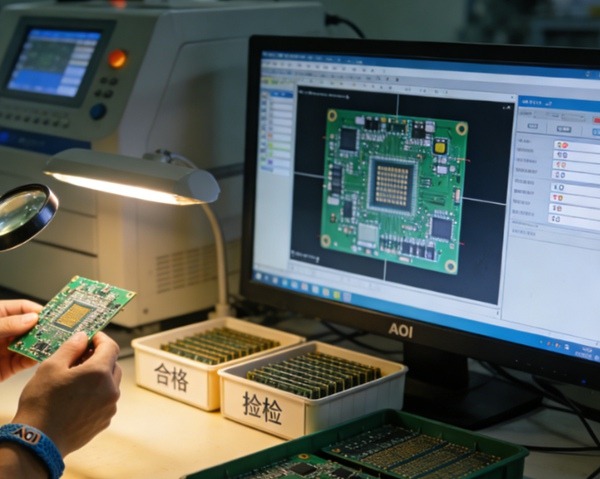

4. Inspection & Testing

Common inspection methods:

• AOI
• X-ray inspection
• Functional testing

Testing plans vary by product.

HMLV PCB Assembly Lead Time

Typical lead times:

• Standard: 10–20 working days
• Fast turn: 7–10 working days

Lead time depends on:

• Number of designs
• Component availability
• Testing complexity

Timing factors:
PCB Assembly Lead Time Explained

HMLV PCB Assembly Cost Considerations

Cost drivers include:

• Engineering effort
• Setup and changeover time
• Component sourcing inefficiency
• Testing customization

HMLV PCBA focuses on total project efficiency, not the lowest unit cost.

Cost reference:
PCB Assembly Cost Explained

HMLV vs Low Volume vs Mass Production

Aspect	Prototype	Low Volume	HMLV	Mass Production
Product variety	Low	Low	High	Low
Quantity	Very low	Low	Low	High
Flexibility	Very high	Medium	Very high	Low
Cost focus	Speed	Balance	Flexibility	Unit cost

Best Practices for High Mix Low Volume PCB Assembly

• Standardize components where possible
• Use modular PCB designs
• Maintain clear documentation
• Choose a manufacturer experienced in HMLV production

Service model:
What Is Turnkey PCB Assembly and How It Works

Why Choose TOPFAST for HMLV PCB Assembly?

As a professional PCB manufacturer, TOPFAST offers:

• Dedicated HMLV production lines
• Advanced SMT & selective THT capabilities
• Strong component sourcing network
• Customized testing solutions
• Proven experience in industrial-grade PCBA

TOPFAST enables customers to manage complexity without sacrificing quality.

Conclusion

High mix low volume PCB assembly is essential for industries requiring flexibility, customization, and fast response to market changes.
Although HMLV PCBA introduces complexity in engineering, sourcing, and testing, it enables manufacturers to deliver highly customized and reliable electronic products.

By working with TOPFAST, a professional PCB manufacturer, customers gain an experienced partner capable of managing HMLV PCB assembly efficiently, ensuring consistent quality and scalable production support.
