A 30-amp relay is an electromagnetic switching component specifically designed to control high-current loads up to 30 amperes. Utilizing electromagnetic induction principles, these relays provide isolated control of high-current circuits through low-current signals, making them critical components in industrial automation and power systems.

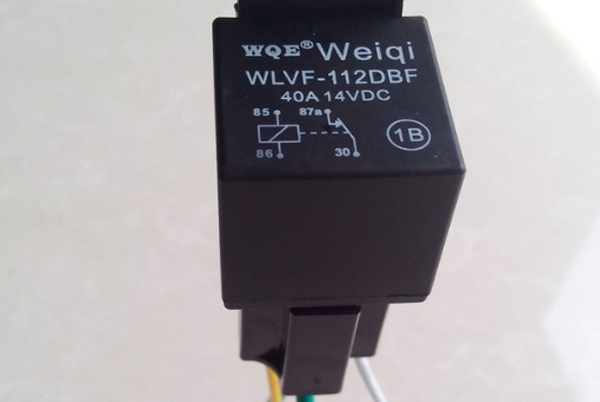

1. Fundamentals and Working Principle of 30-Amp Relays
Core Features and Advantages
- High Load Capacity: Directly drives high-power equipment like motors, heaters, and solenoid valves without additional power amplifiers
- Electrical Isolation: Complete isolation between coil and contacts ensures control circuit safety, with isolation voltages typically exceeding 2500V
- Industrial-Grade Reliability: Features silver alloy contacts and sealed construction, with mechanical lifespan exceeding 1 million operations and electrical lifespan over 100,000 operations
- Fast Response: Typical actuation time of 10- 15 ms meets real-time requirements for most industrial control scenarios
Differences Between 30A Relays and Standard Relays
Compared to standard relays, 30A relays exhibit significant differences in:
- Thicker contact materials, often using arc-resistant compounds like silver tin oxide (AgSnO₂)
- Enhanced arc suppression systems with built-in magnetic blowout or ceramic arc chutes
- Superior thermal design, with some models incorporating metal heat sinks or cooling substrates
2. Detailed Technical Specifications of 30-Amp Relays
Key Parameter Analysis
| Parameter | Typical Value | Technical Significance | Testing Standard |
|---|---|---|---|
| Rated Current | 30A | The maximum continuous load current determines athe pplicable load power | UL508, IEC60947 |
| Contact Form | SPST/SPDT/DPDT | Single pole single throw / single pole double throw / double pole double throw configurations | - |
| Coil Voltage | DC12V-220V AC24V-240V | Control signal voltage type must match dthe rive circuit | - |
| Contact Resistance | <50mΩ | Low resistance ensures minimal power loss and heat generation | IEC61810 |
| Insulation Resistance | >100MΩ@500VDC | Prevents leakage between coil and contacts, enhances safety | IEC60664 |
| Dielectric Strength | 2500VAC | Insulation between the coil and the contacts | UL508 |
| Operating Temperature | -40℃~85℃ | Suitable for industrial-grade temperature extremes | IEC60068 |
| Mechanical Life | 1,000,000 cycles | Operations under no-load conditions | IEC61810 |
| Electrical Life | 100,000 cycles | Operations under rated load | IEC61810 |
Special Performance Metrics
- Shock Resistance: Military-grade relays withstand up to 50G shock, automotive-grade typically 10-15G
- Vibration Tolerance: Withstands 5-15G vibration across 5-2000Hz frequency range
- Protection Rating: IP67 sealed models provide complete dust/waterproofing for outdoor use
- Altitude Rating: Standard models suitable below 2000m, high-altitude versions available for 5000m
3. Application Scenarios and Industry Solutions
Industrial Automation
- Motor Control: Conveyor start/stop, pump VFD control through safe isolation of low-voltage signals from high-power circuits
- Heating Equipment: Temperature switching for industrial ovens and heat treatment furnaces, supporting continuous high-current loads
- Robotic Systems: Power switching for end effectors (pneumatic valves, gripper motors)
Renewable Energy & Power Systems
- PV Inverters: Circuit switching in DC combiner boxes, withstands up to 1000VDC
- Energy Storage: Safety switching for battery charge/discharge circuits, supports frequent cycling
- Charging Stations: Controls charging circuit on/off with short-circuit and overcurrent protection
Transportation & Automotive Electronics
- Commercial Vehicles: High-current control for truck AC compressors and starters, resistant to vibration and high temperatures
- Marine Equipment: Engine control systems and lighting panels with IP67 waterproof relays
- Electric Vehicles: Pre-charge circuit control in HV battery packs, ensuring safe power-up sequences
Appliances & Smart Buildings
- High-Power Appliances: Replaces mechanical switches in AC compressors and water heaters
- Smart Home: Main power control for central AC and floor heating systems
- Building Automation: Power management for elevator controls and fire safety equipment
4. Selection Guide for 30 Amp Relays
1. Load Characteristic Analysis
- Load Type: Resistive loads (heaters)are simplest, inductive loads (motors) require 5-7× startup current allowance
- Voltage Type: AC loads need arc suppression, DC loads require corrosion-resistant materials (gold plating)
- Switching Frequency: High-frequency applications (>10/min) recommend solid-state or silver alloy contact relays
2. Electrical Parameter Matching
- Coil Voltage: Must match control system output (PLCs typically 24VDC, appliances 120/240VAC)
- Contact Rating: Continuous current ≤80% of rated value, intermittent use permits slight overrating
- Safety Margin: Industrial applications should select one size higher (e.g., choose 30A for 25A actual need)
3. Environmental Considerations
- Temperature Range: -40℃ models for cold climates, 85℃/105℃ versions for high-temperature environments
- Protection Level: Minimum IP54 for outdoors, IP67 sealed for humid conditions
- Special Environments: Fully sealed for corrosive atmospheres, anti-vibration models for high-shock applications
4. Brand & Certification Requirements
- International Certifications: CE (EU), UL (US), CCC (China) for market compliance
- Industry Standards: AEC-Q200 for automotive, EN50155 for rail transport
- Leading Brands:
- Premium: Omron, TE Connectivity, Panasonic
- Mid-range: Hongfa, CHINT, Schneider
- Value: Mors Smitt, Xinling
5. Installation, Maintenance & Troubleshooting
Professional Installation Guidelines
- Wiring Standards:
- Use adequate wire gauge (≥4mm² copper for 30A)
- Employ proper crimping tools for terminals
- Avoid connectors in high-current paths, and prefer direct wiring
- Thermal Management:
- Maintain ≥10mm spacing between relays
- Vertical mounting improves convection
- Consider forced air cooling for dense layouts
- Safety Measures:
- Install transparent covers for high-voltage applications
- Apply clear warning labels
- Provide emergency cut-off switches
Maintenance Schedule
- Routine Checks:
- Monthly contact inspection (arcing/oxidation)
- Quarterly contact resistance measurements
- Annual insulation resistance tests
- Preventive Maintenance:
- Replace critical relays every 2 years or 50,000 operations
- Maintain life-cycle records for predictive replacement
- Keep spare inventory to minimize downtime
Fault Diagnosis & Resolution
| Symptom | Likely Cause | Professional Solution |
|---|---|---|
| No Contact Engagement | Coil open/short circuit | Measure coil resistance, replace relay |
| Contact Welding | Overload/material degradation | Upgrade capacity, add arc suppression |
| Abnormal Heating | Poor contact/insufficient cooling | Clean contacts, improve heat dissipation |
| Intermittent Operation | Loose wiring/vibration | Use lock washers, secure connections |
| Premature Failure | Improper environment/selection | Reassess conditions, select the appropriate model |
6. Technological Trends & Innovations
1. Miniaturization & High-Density Designs
- SMT Technology: Surface-mount 30A relays reduce volume by 30% for compact PCBs
- Modular Configurations: Multiple relays integrated into single modules simplify systems
- Ultra-Low Profile: 15mm height models for space-constrained applications
2. Smart Features
- Condition Monitoring: Integrated temperature sensors, contact wear detection
- Predictive Maintenance: IoT-enabled remote monitoring and life forecasting
- Self-Diagnostics: Built-in fault detection with alarm outputs
3. Advanced Materials
- Eco-Friendly Components: Lead-free contacts, recyclable housings meeting RoHS 3.0
- High-Performance Contacts: Silver tungsten carbide (AgWC) for enhanced arc resistance
- Novel Insulation: Nano-ceramic filled materials improve high-temperature performance
4. New Energy Specializations
- HV DC Models: For 800V+ electric vehicle systems
- Fast-Acting Types: <5ms breaking time for solar applications
- Low-Power Versions: Coil consumption below 0.5W for photovoltaic use
