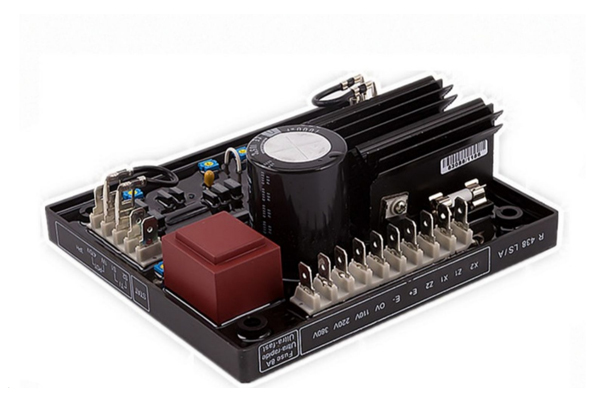

What is a 12 Volt Voltage Regulator?
A 12 volt voltage regulator is a device used to maintain the output voltage of a generator at a stable level of 12 volts (V). Its main function is to ensure the stability of the power supply by automatically regulating the output voltage of the generator. The 12 volt voltage regulator is usually installed at the back of the generator, and its core task is to convert the alternating current (AC) power produced by the generator into a stable 12-volt direct current (DC) power.

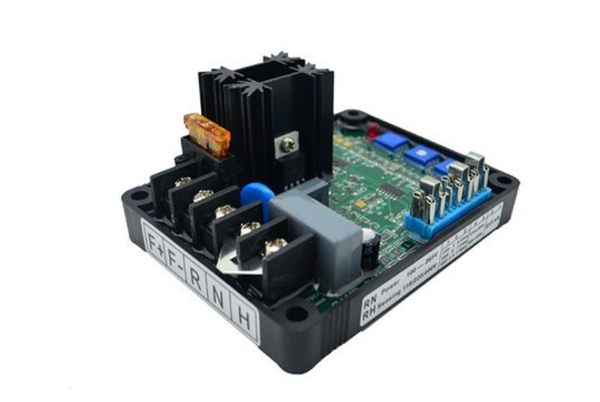

What are the types of 12 volt voltage regulators?
Modern electronic regulators offer significant advantages over the traditional contact type: accuracy is improved by 5-10 times, life expectancy is extended by more than 10 times, and the problem of spark interference is completely eliminated. As technology advances, integrated circuits and computer-controlled regulators are becoming the mainstream choice.
Main types and characteristics
1.Contact voltage regulator (eliminated)
Features: mechanical contact structure, the earliest type of regulator
Disadvantages: low regulation accuracy (± 0.5V), easy to produce sparks, interference with radio signals
Status: due to poor performance, has been replaced by modern electronic regulators
2.Transistor regulator
Advantage: high switching frequency (up to 1000Hz), no sparks, high regulation accuracy (±0.1V), small size, light weight.
Application: low and medium grade automobile, common industrial equipment.
Life: up to 50,000 hours or more
3.Integrated circuit regulator
Upgrade features: ultra-small package, easier installation, excellent heat dissipation performance.
Typical applications: Volkswagen Santana, Audi, and other mid-to-high-end models
Advantage: more stable and reliable thana transistor regulator.
4.Computer-controlled regulator
Intelligent features: precise control through ECU, real-time monitoring of system load, adaptive regulation capability.
Representative models: Buick, Honda, and other high-end brands
Precision: up to ±0.05V
Maintenance advice: check the output voltage regularly (should be between 13.8- 14.4V), abnormal fluctuations may indicate regulator failure. When choosing, in addition to considering the type, you also need to pay attention to the maximum current capacity to match the system requirements.
Advantages and Disadvantages of 12 Volt Voltage Regulators
Advantages of 12-Volt Voltage Regulators
Protect the battery: 12 12-volt voltage regulator can prevent the battery from being damaged by overcharging and prolong its service life. When the battery voltage is higher than the set value, the regulator will disconnect the power supply to avoid overcharging; when the voltage is lower than the set value, the regulator will re-power the battery to ensure that the battery is in a safe state.
Stabilizing voltage output: The regulator can automatically adjust the output voltage of the generator to ensure that the voltage is within the ideal range, preventing the voltage from being too high or too low and causing damage to the electrical equipment. This helps to improve the stability and reliability of the electrical system.
Protection against charging current overload: The 12-volt voltage regulator monitors the charging current and automatically adjusts to protect the generator and batteries from equipment damage once the set value is exceeded.
Reverse current protection: The regulator has a reverse current protection function, which can quickly cut off the charging circuit when the abnormal current direction is detected, ensuring the safety of the system.
Disadvantages of 12-volt voltage regulators
Higher cost: Compared to simple circuit protection devices, 12-volt voltage regulators are more expensive to design and manufacture, which may increase the overall cost of the product.
Technical complexity: Because their internal mechanisms involve multiple electronic components and intelligent controls, 12-volt voltage regulators require a certain level of specialized knowledge to design and maintain, adding to the complexity of their use.
Reliability issues: Although modern regulators are mostly designed with high-frequency, high-precision transistors and integrated circuits, there are still reliability issues, such as aging components and environmental influences that may lead to failures
Role of the 12-volt voltage regulator
The 12-volt voltage regulator is the “intelligent housekeeper” of the automobile electric power system, which undertakes the following key roles:
1.Precise voltage regulation
As the voltage regulator of the power system, the voltage regulator regulates the excitation current of the generator intelligently, and stabilizes the output voltage at the ideal range of 13.5-14.5 volts (Note: 12-volt system actual working voltage), to ensure that the whole car electronic equipment obtains a stable supply of electricity.
2.Overload protection system
When abnormally high current is detected, the regulator will immediately:
Automatically reduce or cut off the excitation current
Effectively prevent generator and battery overload damage
Protect the line from overcurrent impact
3.Reverse current blocking protection
Equipped with an intelligent current direction detection function, it will act quickly when
Immediately cut off the circuit when the battery is discharged in the reverse direction
Prevent the generator from being damaged by reverse current
Avoid abnormal battery discharge
4.Additional Protection Functions
Modern intelligent regulator also has:
Temperature compensation function (automatically adjusts the output voltage according to the ambient temperature)
Load response regulation (dynamic optimization according to the demand of power equipment)
Fault self-diagnosis capability
This multifunctional protection system not only extends the service life of the battery and generator but also ensures the stable operation of the automotive electronic system, which is an indispensable core electrical component of modern vehicles. Choosing a quality voltage regulator can effectively prevent more than 80% of automotive circuit failures.
12 Volt Voltage Regulator Working Principle
The core working principle of the 12V regulator is to control the energy transfer through high-frequency switching devices, together with the closed-loop feedback system, to dynamically adjust the duty cycle to realize the regulated voltage output. The following is a detailed description of the key links:
1.Main circuit energy conversion process
- Input filtering and rectification
The AC input is converted to 310V DC by a bridge rectifier after filtering out high-frequency interference by X/Y capacitor and common mode inductor.
Large-capacity electrolytic capacitors (e.g., 100μF/400V) further smooth the DC voltage to provide stable energy for the subsequent circuits. - High-frequency inverter link
The PWM controller (e.g. UC3842) drives the MOSFET to switch at a frequency of tens of kHz to hundreds of kHz, cutting the DC into high-frequency pulses.
The high-frequency transformer realizes voltage conversion and electrical isolation by turns ratio (e.g. 25:1). - Output rectifier filter
Fast recovery diode (e.g. SR520) rectifies the secondary winding and then outputs a smooth 12V DC through LC filter (1000μF/25V capacitor + inductor).
2.Closed-loop voltage stabilization control mechanism
The core control adopts a voltage-current dual-loop structure:
- Sampling feedback
The output voltage is collected in real time through a resistor voltage divider network (e.g. 10kΩ+2.5kΩ), and the error signal is generated by comparing it with the 2.5V reference value of the TL431 reference source. - Dynamic regulation
The error signal is passed to the primary side through the optocoupler (e.g., PC817) to adjust the PWM duty cycle: the on-time is increased when the voltage is low and decreased when it is high.
The current inner loop limits the maximum output current, improves dynamic response speed, and reduces voltage ripple (typical value <1%). - Mode switching
When the load changes, the system automatically switches between voltage regulator and current regulator modes:
The dual rings work together in voltage stabilization mode, giving priority to voltage stabilization.
When overloaded, the voltage ring saturates, and only the current ring takes effect to protect the device.
3.Key protection design
Overvoltage protection: TVS tube or varistor absorbs surge voltage.
Overcurrent protection: 0.1Ω detection resistor triggers PWM shutdown.
Soft-switching technology: phase-shifting FB-ZVS control, the use of leakage inductance and parasitic capacitance resonance to achieve zero-voltage switching, reducing losses (efficiency up to 90% or more)

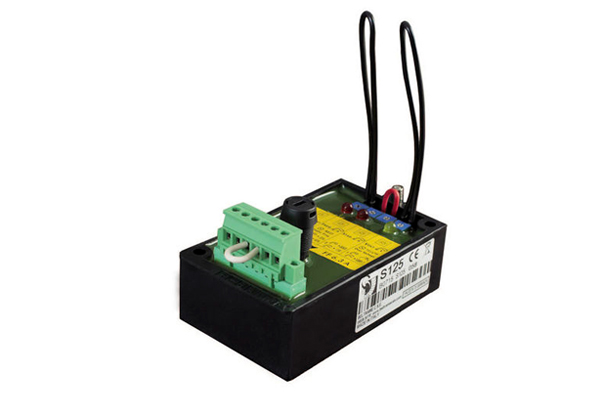

12 Volt Voltage Regulators in PCBs
1.Core elements of device selection
PCB design in the selection of 12-volt voltage regulator, engineers need to focus on the following parameters:
Current output capacity: according to the load demand to choose the appropriate current specifications (such as LM2596 can provide 3A continuous output)
Conversion efficiency: high-quality switching regulator efficiency up to 90% or more
Package form: TO-220, SOP-8 and other different packages affect the heat dissipation and layout
Peripheral component requirements: preferably simple peripheral circuit models (such as only 4-6 peripheral components)
2.PCB layout design specifications
- Power path optimization
Adopt star topology alignment to reduce interference
Maintain adequate power line width (at least 40mil/1A when 1oz copper thickness)
Shorten the high-frequency circuit path - Anti-interference design
Locate filter capacitors close to the input/output terminals (100μF+0.1μF combination is recommended).
Sensitive signal lines are far away from the joints
Adopt single-point grounding design - Thermal management measures
Reserve enough copper laying area for TO-220 package.
Add heat sink arrays if necessary
Keep high temperature areas away from electrolytic capacitors
3.Typical Application Scenarios
- Audio system
Provide pure power supply with THD<0.01%.
Adopt LC π-type filtering network
Focus on 50Hz industrial frequency interference - Industrial control panels
Meet EMC Class B standard
Built-in over-voltage protection up to 36V
Support -40℃~85℃ wide temperature operation - LED driver system
Constant voltage/constant current dual mode design
PWM dimming support
High efficiency conversion design
4.Design verification points
- full load test output voltage ripple (should be <50mVpp)
- dynamic load response test (0-100% load jump)
- long time aging stability test
- high and low temperature cycle test
Through scientific selection and standardized PCB design, 12-volt voltage regulator can provide efficient and stable power supply solutions for all kinds of electronic equipment. It is recommended to reserve 10-20% power margin in the design and use four-layer PCB board design to get the best performance.
Areas of application for 12-volt voltage regulators
The main area of application for 12 volt voltage regulators is the electrical system of automobiles. The 12V regulator plays a crucial role in the electrical system of an automobile. It is essentially a rectifier, situated at the back of the generator, and its core task is to convert the alternating current (AC) generated by the generator into a stable 12-volt DC, ensuring the stability and efficiency of the automotive electrical system.
Specific application scenarios and roles
Stabilizing voltage output: By controlling the output voltage of the generator, the 12V regulator ensures that the voltage is within the ideal range, which is usually maintained at around 14V, thus providing a stable power supply to various electronic devices and batteries in the car.
Protecting the generator and battery: The regulator is also responsible for preventing overloading of the charging current and will automatically adjust to protect the generator and battery once the current exceeds the set value. In addition, it ensures the safety of the system by quickly cutting off the charging circuit when it detects an abnormal current direction.
Adapt to engine speed change: Since the engine speed of the car is not certain, the regulator stabilizes the output voltage of the generator by dynamically adjusting the size of the excitation current to ensure that the voltage remains constant when the engine speed changes.
